LABO Supersonic Jet Mill Model LJ-3
For experimental trial and error of the pulverization theme
Principle
- Pulverization is performed through the particles collide with the target plate in a air flow of theoretically over Mach 2.
- The high performance classifier separates the coarse particles and the fine particles.
- Circulate the coarse particles to the pulverization zone again.
Features
- Suitable for producing a sample of a small quantity.
- High-efficiency pulverization is enabled by the large impact force.
- Pulverizes the material powder of high hardness, which was conventionally impossible to pulverize.
- The pulverized particles of a narrow particle size distribution can be obtained.
- Easy maintenance due to the simple structure.
- The dust collector with the built-in NPK Excell Filter is capable to collect the ultra fine particles.
Specifications
| Model |
Comp. air consumption [Nm³/min] |
Compressor power [kW] |
Blower power [kW] |
Comp air. supply port diameter [－] |
Outside dimension [D×W×H mm] |
weight [kg] |
| LJ-3 | 0.4 | 5.5 | 1.9 | 12Tube | 600×1350×1622 | 350 |
Optional Specifications
| 1. | Antifriction specification | The materials of high hardness or elastic-resinous surface coating on the powder contacting parts can be applied. |
| 2. |
Ultra fine pulverization specification (FAS･N Type Casing) |
Capable to provide further fine particles. |
| 3. | Classifier combined model | The cutting size of the pulverized particles is optionally adjustable. |

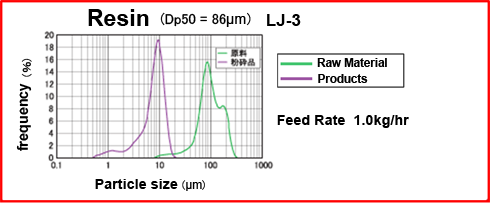

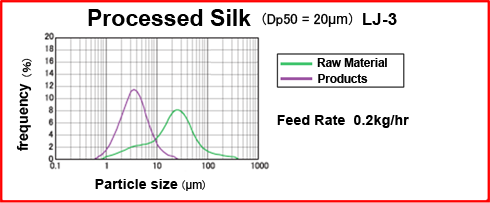

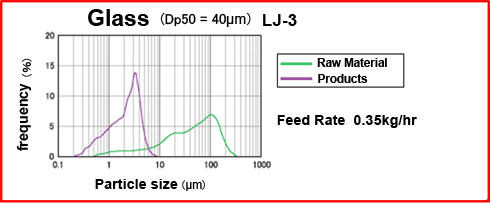

Application Examples
