Powder Knocking-Off Device Magical Knocker Model MGK
Provides a direct impact anywhere at once

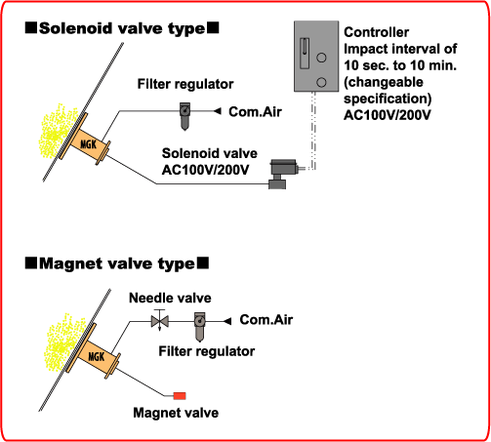

Principle
Features
- Able to attach anywhere without welding.
- The piston directly strikes the object, and creates a strong impact.
- The impacting mechanism provides an excellent effect of powder-shaking off.
- The impacting force is adjustable.
- No lubrication, and non-sealing
- High durability
Specifications /Outline Dimension
| Model |
Comp. air consumption [NL/cyc] |
Applied pressure range [MPa] |
Impact force [N･m] |
Weight of main unit [kg] |
Outline dimension [L×W×H mm] |
Connection tube diameter [－] |
Applicable pipe diameter [Kg] |
||
| MGK-30A | 0.02～0.03 | 0.1～0.2 | 0.57～1.13 | 0.4 | 200 | 140 | 85.5 | Φ8 | Minimum 100A |
| MGK-40A | 0.03～0.05 | 0.1～0.2 | 1.23～2.46 | 0.7 | 250 | 200 | 115 | Φ8 |
Minimum 150A |
