Ultra Fine Separator Model EVX
Challenge to the limit of dry classification!
Principle
- Improved dispersion by direct application of compressed sir to raw materials.
- Nearly doubles the turning speed of conventional unit within almost classification zones.
- Suppresses central vortex turbulence and prevents coarse product from flying in.
Features
- Maximum particle size of 300nm after classification.
- Wide classification range (150nm to 1.5μm).
- Improved classifying accuracy enables twice the recovery rate and three times the production speed to conventional machines.
Specifications
| Model |
Comp. air consumption [Nm³/min] |
Air flow [Nm³/min] |
Blower power [kW] |
Unit size [W×D×H mm] |
Weight of main unit [kg] |
| EVX-1 | 0.56 | 1.0-1.2 | 3.7 | 1700×850×1500 | 616 |
Applications
Nickel, Barium titanate, Ceramics, Resins, Metallic material, Glass, Medicine, Pigments, Powder Paint, Graphite, Toners, Various organic and inorganic substances.

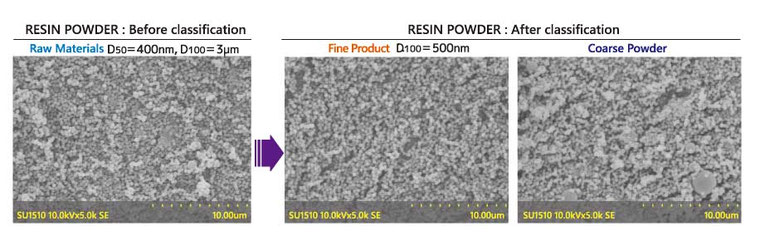

Applications Examples
