Complete Jet Mill Plant with Helium Gas Circulation System
To make the particles 1μm smaller
Principle
Pulverization is performed with helium gas, which creates impacting energy larger than with the air condition.
Features
- Pulverization efficiency significantly increased with the special gas.
- The art of classification effect in the pulverization zone provides a narrow particle size distribution,and the particle size could be adjusted from the nano class to some dozens of micron.
- Capable to pulverize the material powder of a low-melting point.
- Low noise due to the closed structure
- Maintenance and inspection are easy, as there is no moving part.
Specification
| Model |
Feed rate [kg/h] |
Helium gas circulation volume [Nm³/min] |
Compressor power [kW] |
| PJM-80 HE | ～5 | 1.4 | ～15 |
| PJM-160 HE | ～50 | 8.0 | ～75 |
| LJ | ～5 | 1.1 | ～15 |
| CPY-2 | ～30 | 5.1 | ～55 |
Applications
Ceramics, resin, metal, glass, medicine, food, pigment, dye, graphite, toner, powder colorant, other organic / inorganic materials.

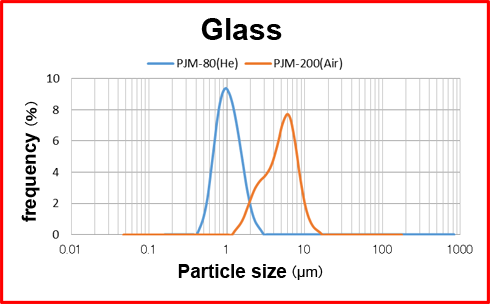

Applications Examples
