Ultra-Mini Supersonic Jet Mill Model JKE
Ultra-compact Jet Mill In the palm of your hand
Features
- Only six Main Parts － Even the largest part weights only 800g.
- Ultra-small volume processing･High return rate － Yieldsa high collection rate at a small portion of valuable materials. (Above 80% of the collection rate when feeding 10g to 30g of materials powder)
- Space-saving － Unit dimensions only 410×300×H450mm.
- No power supply required － For use with compressed air only.
- No tool required － Quick dismantling and re-assembly due to the helical connection of main unit.
- Whole main body washable － The product collection area is also compact and does not require a dedicated washing area.
Specifications
| Model |
Comp. air consumption [L/min] |
Compressor power [kW] |
Comp. air supply port diameter [－] |
Exhaust port diameter [－] |
Unit size [L×W×H mm] |
Unit Weight [kg] |
| JKE-30 | ～74.5 | 0.75 | Φ8 tube | 8A ferrule | 300×410×450 | 16 |

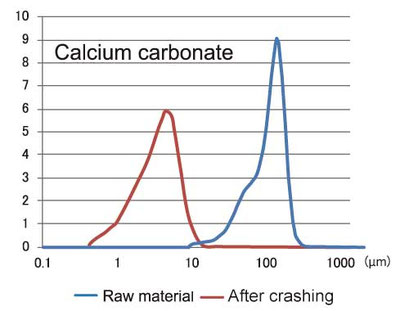

Application Examples
